ot_obj Class Reference

OT_LIB base object class. More...

#include <ot_obj.h>

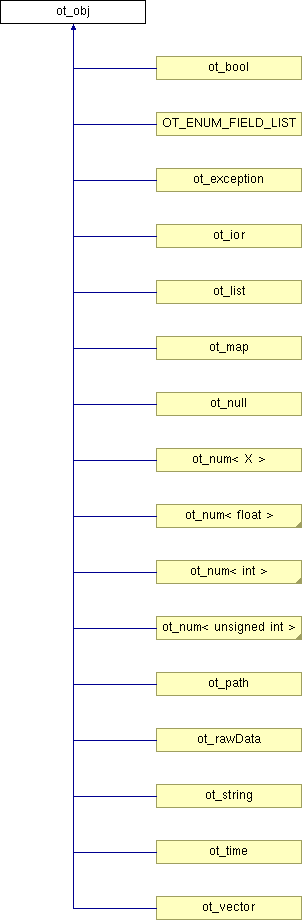

Inheritance diagram for ot_obj:

List of all members.

Public Member Functions
virtual	~ot_obj ()
	Default destructor.
OT_OBJECT_TYPE	getType (void) const
virtual ot_obj *	dup (void) const =0
virtual bool	operator== (const ot_obj *o) const =0
	Eq operator.
bool	operator== (const ot_obj &o) const
	Eq operator.
virtual void	asXml (ostream &s=cout, int i=0) const =0
virtual bool	asData (ostream &s) const =0
Static Public Member Functions
static bool	readStringFromData (istream &s, string &ret)
static bool	readIntegerFromData (istream &s, int &ret)
static bool	readUnsignedIntegerFromData (istream &s, unsigned int &ret)
static bool	readFloatFromData (istream &s, float &ret)
static bool	readBoolFromData (istream &s, bool &ret)
static bool	readRawFromData (istream &s, char *&data, int &size)
static bool	writeStringAsData (ostream &s, const string &val)
static bool	writeIntegerAsData (ostream &s, int val)
static bool	writeBoolAsData (ostream &s, bool val)
static bool	writeRawAsData (ostream &s, const char *data, int size)
Protected Member Functions
	ot_obj (OT_OBJECT_TYPE type)
Private Attributes
OT_OBJECT_TYPE	m_type
	Identify the object type.

---

Detailed Description

OT_LIB base object class.

This is the base class of all OT objects

---

Constructor & Destructor Documentation

ot_obj::ot_obj

(

OT_OBJECT_TYPE

type

)

[protected]

Default costructor

Parameters:

type

The object type

virtual ot_obj::~ot_obj

(

)

[virtual]

Default destructor.

---

Member Function Documentation

OT_OBJECT_TYPE ot_obj::getType

(

void

)

const

Get object type

Returns:

The object type

Referenced by ot_num< X >::asData(), ot_num< X >::asXml(), ot_vector::operator==(), ot_time::operator==(), ot_string::operator==(), ot_rawData::operator==(), ot_path::operator==(), ot_num< unsigned int >::operator==(), ot_null::operator==(), ot_map::operator==(), ot_list::operator==(), ot_ior::operator==(), OT_ENUM_FIELD_LIST::operator==(), and ot_bool::operator==().

virtual ot_obj* ot_obj::dup

(

void

)

const [pure virtual]

Clone the object and return the pointer of the new object

Returns:

Pointer to the new object

Implemented in ot_bool, OT_ENUM_FIELD_LIST, ot_float, ot_int, ot_ior, ot_list, ot_map, ot_null, ot_path, ot_rawData, ot_string, ot_time, ot_uint, and ot_vector.

virtual bool ot_obj::operator==

(

const ot_obj *

o

)

const [pure virtual]

Eq operator.

Implemented in ot_bool, OT_ENUM_FIELD_LIST, ot_ior, ot_list, ot_map, ot_null, ot_num< X >, ot_path, ot_rawData, ot_string, ot_time, ot_vector, ot_num< float >, ot_num< int >, and ot_num< unsigned int >.

bool ot_obj::operator==

(

const ot_obj &

o

)

const

Eq operator.

virtual void ot_obj::asXml	(	ostream &	s = cout,
		int	i = 0
	)			const [pure virtual]

Write the object XML rappresentation on output stream

Parameters:

	s	The output stream
	i	The indent spaces

Implemented in ot_bool, OT_ENUM_FIELD_LIST, ot_exception, ot_ior, ot_list, ot_map, ot_null, ot_num< X >, ot_path, ot_rawData, ot_string, ot_time, ot_vector, ot_num< float >, ot_num< int >, and ot_num< unsigned int >.

virtual bool ot_obj::asData

(

ostream &

s

)

const [pure virtual]

Build a binary image of the object

Parameters:

s

The output stream

Implemented in ot_bool, OT_ENUM_FIELD_LIST, ot_ior, ot_list, ot_map, ot_null, ot_num< X >, ot_path, ot_rawData, ot_string, ot_time, ot_vector, ot_num< float >, ot_num< int >, and ot_num< unsigned int >.

static bool ot_obj::readStringFromData	(	istream &	s,
		string &	ret
	)			[static]

Read a string from data stream

Parameters:

	s	The input stream
	ret	The readed string

Returns:

True if ok or error

static bool ot_obj::readIntegerFromData	(	istream &	s,
		int &	ret
	)			[static]

Read a integer from data stream

Parameters:

	s	The input stream
	ret	The readed intefer

Returns:

True if ok or error

static bool ot_obj::readUnsignedIntegerFromData	(	istream &	s,
		unsigned int &	ret
	)			[static]

Read a unsigned integer from data stream

Parameters:

	s	The input stream
	ret	The readed intefer

Returns:

True if ok or error

static bool ot_obj::readFloatFromData	(	istream &	s,
		float &	ret
	)			[static]

Read a float from data stream

Parameters:

	s	The input stream
	ret	The readed float

Returns:

True if ok or error

static bool ot_obj::readBoolFromData	(	istream &	s,
		bool &	ret
	)			[static]

Read a bool from data stream

Parameters:

	s	The input stream
	ret	The readed bool

Returns:

True if ok or error

static bool ot_obj::readRawFromData	(	istream &	s,
		char *&	data,
		int &	size
	)			[static]

Read buffer from data stream

Parameters:

	s	The input stream
	data	The readed buffer
	size	The size of readed buffer

Returns:

True if ok or error

static bool ot_obj::writeStringAsData	(	ostream &	s,
		const string &	val
	)			[static]

Write string on data stream

Parameters:

	s	The output stream
	val	The string to write

Returns:

True if ok or error

static bool ot_obj::writeIntegerAsData	(	ostream &	s,
		int	val
	)			[static]

Write integer on data stream

Parameters:

	s	The output stream
	val	The integer to write

Returns:

True if ok or error

static bool ot_obj::writeBoolAsData	(	ostream &	s,
		bool	val
	)			[static]

Write bool on data stream

Parameters:

	s	The output stream
	val	The boolean to write

Returns:

True if ok or error

static bool ot_obj::writeRawAsData	(	ostream &	s,
		const char *	data,
		int	size
	)			[static]

Write buffer on data stream

Parameters:

	s	The output stream
	data	Pointer to data
	size	The size of the buffer

Returns:

True if ok or error

---

Member Data Documentation

OT_OBJECT_TYPE ot_obj::m_type [private]

Identify the object type.

Reimplemented in ot_ior.

---

The documentation for this class was generated from the following file:

• /mnt/USB_DISK/BUILD/prj_sf/otlib/trunk/include/core/ot_obj.h
